2-Wire Video Intercom - 290M-S8 7-inch Linux Indoor Monitor – DNAKE Detail:
1. It can connect to any IP device using a two-wire cable, even in an analog environment.
2. Multiple functions include video intercom, door access, emergency call, and security alarm, etc.
3. According to your needs, it can be used with home automation and lift control system.
4. When any IP door station which supports SIP protocol calls 290 monitor, it can transfer the call to the intercom APP installed in your smartphone for remote unlocking and monitoring.
2. Multiple functions include video intercom, door access, emergency call, and security alarm, etc.
3. According to your needs, it can be used with home automation and lift control system.
4. When any IP door station which supports SIP protocol calls 290 monitor, it can transfer the call to the intercom APP installed in your smartphone for remote unlocking and monitoring.
| Physical Property | |
| System | Linux |
| CPU | 1.2GHz,ARM Cortex-A7 |
| Memory | 64MB DDR2 SDRAM |
| Flash | 128MB NAND FLASH |
| Display | 7" TFT LCD,800x480 |
| Power | TwoWire Supply |
| Standby power | 1.5W |
| Rated Power | 9W |
| Temperature | -10℃ - +55℃ |
| Humidity | 20%-85% |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Display | Capacitive, TouchScreen(optional) |
| Camera | No |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | TCP/IP,SIP,2-wire |
| Features | |
| IP Camera Support | 8-wayCameras |
| Multi Language | Yes |
| PictureRecord | Yes(64pcs) |
| Elevator Control | Yes |
| Home Automation | Yes(RS485) |
| Alarm | Yes(8 Zones) |
| UI Customized | Yes |
-
Datasheet 290M-S8.pdfDownload
Product detail pictures:
Related Product Guide:
We believe that prolonged expression partnership is really a result of top of the range, value added support, rich encounter and personal contact for 2-Wire Video Intercom - 290M-S8 7-inch Linux Indoor Monitor – DNAKE, The product will supply to all over the world, such as: Grenada , Argentina , Egypt , We aim to build a famous brand which can influence a certain group of people and light up the whole world. We want our staff to realize self-reliance, then achieve financial freedom, lastly obtain time and spiritual freedom. We do not focus on how much fortune we can make, instead we aim to obtain high reputation and be recognized for our products. As a result, our happiness comes from our clients satisfaction rather than how much money we earn. Ours team will do best for you always.
-

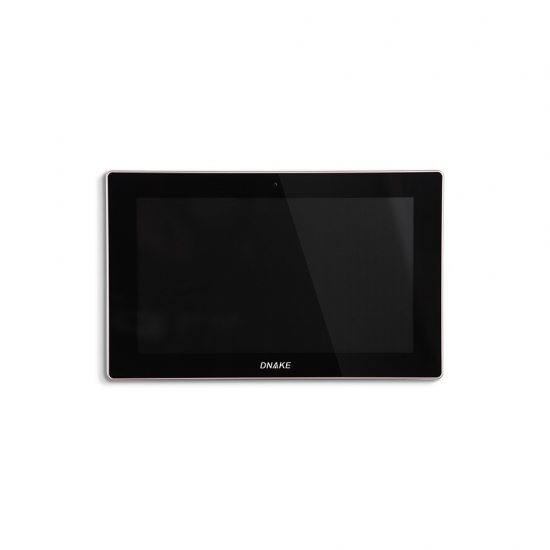

Datasheet 904M-S3.pdfDownload
