902C-A

Android-based IP Master Station

902C-A2 Android 10.1″ Touch Screen SIP2.0 Management Center

• 10.1-inch capacitive touch screen
• Android system
• Alarm/call logs
• Message sending/receiving
• Powered by PoE or power adapter (DC12V/2A)
• Support SIP 2.0 protocol, easy integration with other SIP devices
• Support monitoring 16 IP cameras
Y-4icon_画板 1        Y-4icon_画板 1 副本 3
230707-902C-A Detail Page_1 230707-902C-A Detail Page_4 230707-902C-A Detail Page_3 New 902C-A Detail_2

Spec

Download

Product Tags

 Physical Property
  System  Android
  RAM  512MB
  ROM  4GB
  Front Panel  Plastic
  Power Supply  PoE (802.3af) or DC12V/2A
  Standby Power  3W
  Rated Power  10W
  Camera  0.3MP, CMOS
  Installation  Desktop
  Dimension  303 x 195 x 35mm
  Working Temperature  -10℃ - +55℃
  Storage Temperature  -40℃ - +70℃
  Working Humidity  10%-90% (non-condensing)
 Display
  Display  10.1-inch TFT LCD
  Screen   Capacitive touch screen
  Resolution  1024 x 600
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
 Networking
  Protocol SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  SD Card Port  1
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  • Datasheet 904M-S3.pdf
    Download

Get A Quote

Related Products



Audio Indoor Monitor
E211

Audio Indoor Monitor

Multi-button SIP Video Door Phone
S213M

Multi-button SIP Video Door Phone

8” Facial Recognition Android Door Station
S617

8” Facial Recognition Android Door Station

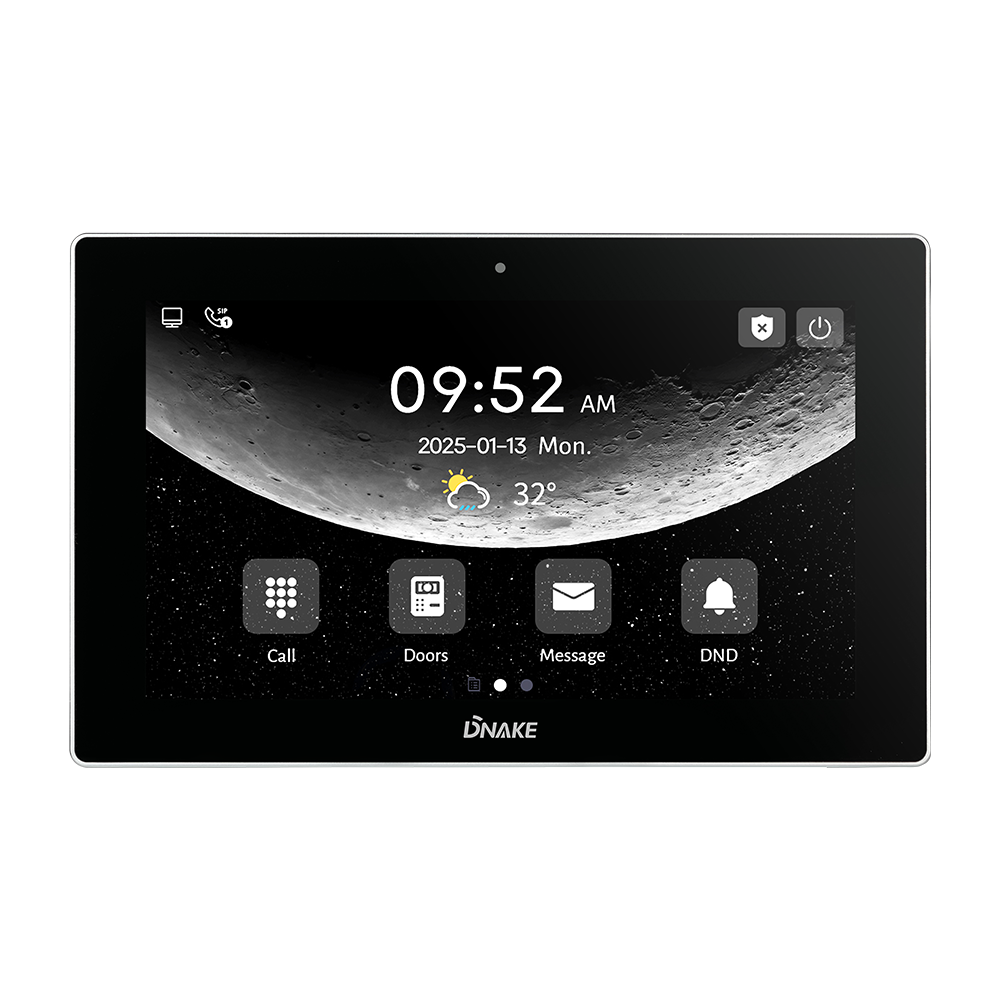

10.1” Android Indoor Monitor
