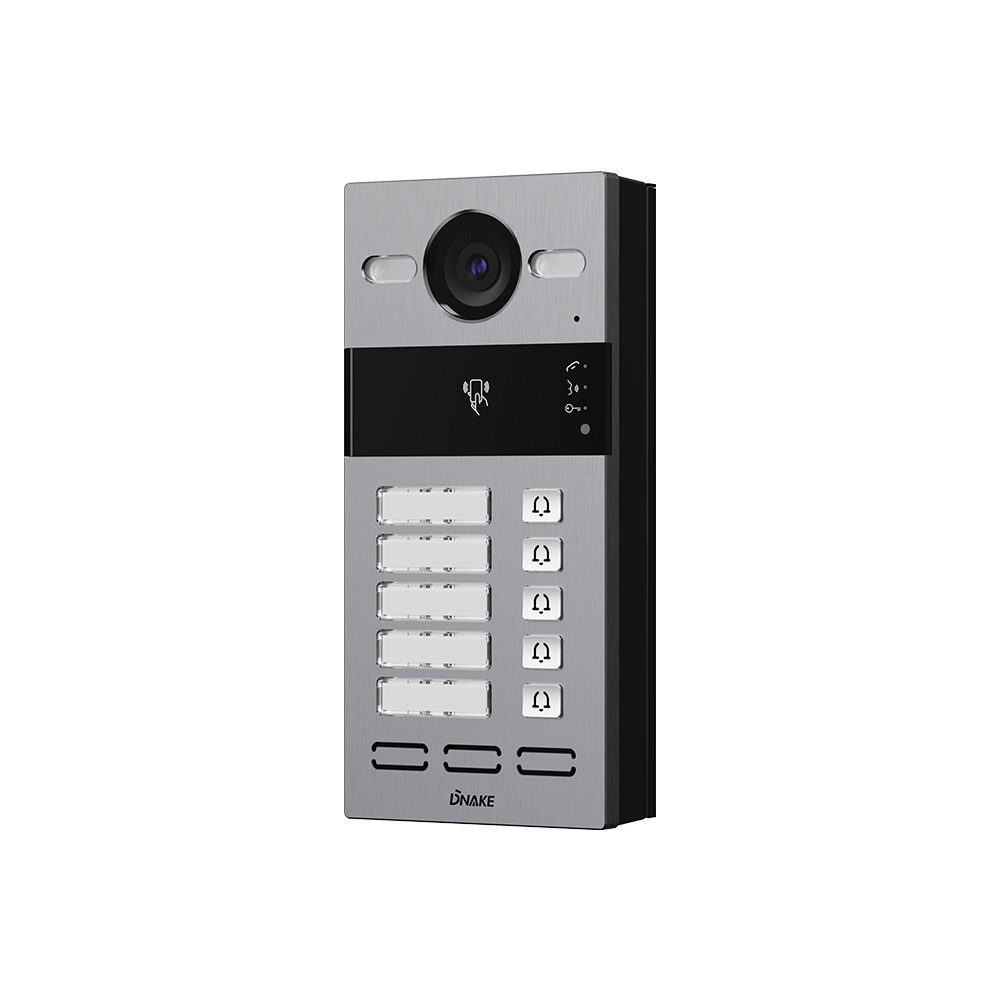

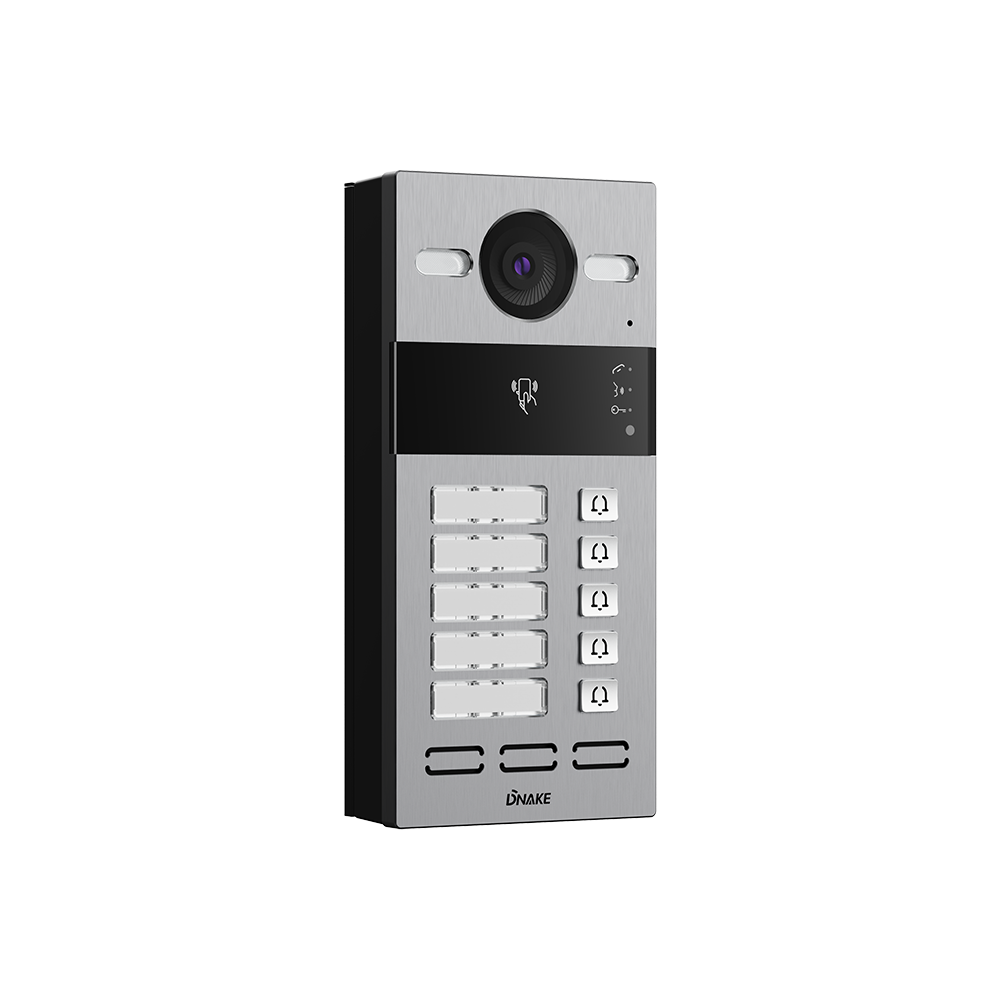

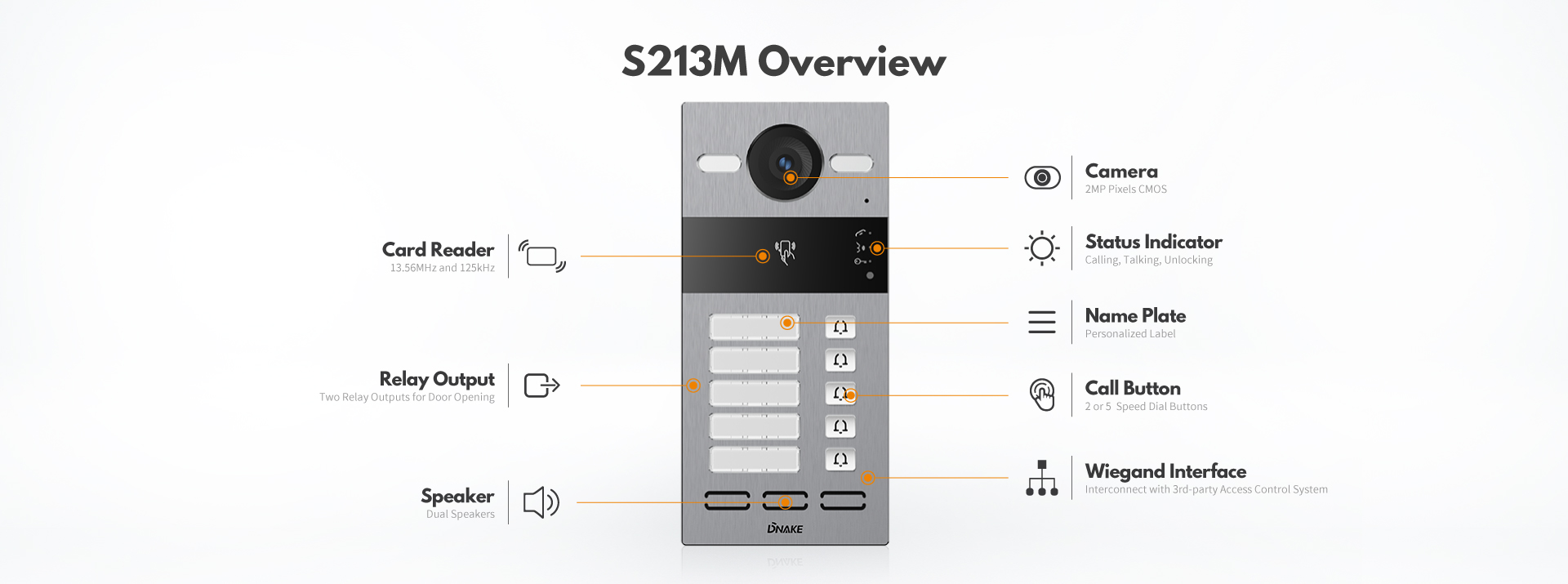

S213M

Maballin Maɓalli da yawa SIP Wayar Kofar Bidiyo

• Aluminum alloy panel

• 110° faɗin kusurwa 2MP HD kyamara tare da hasken atomatik

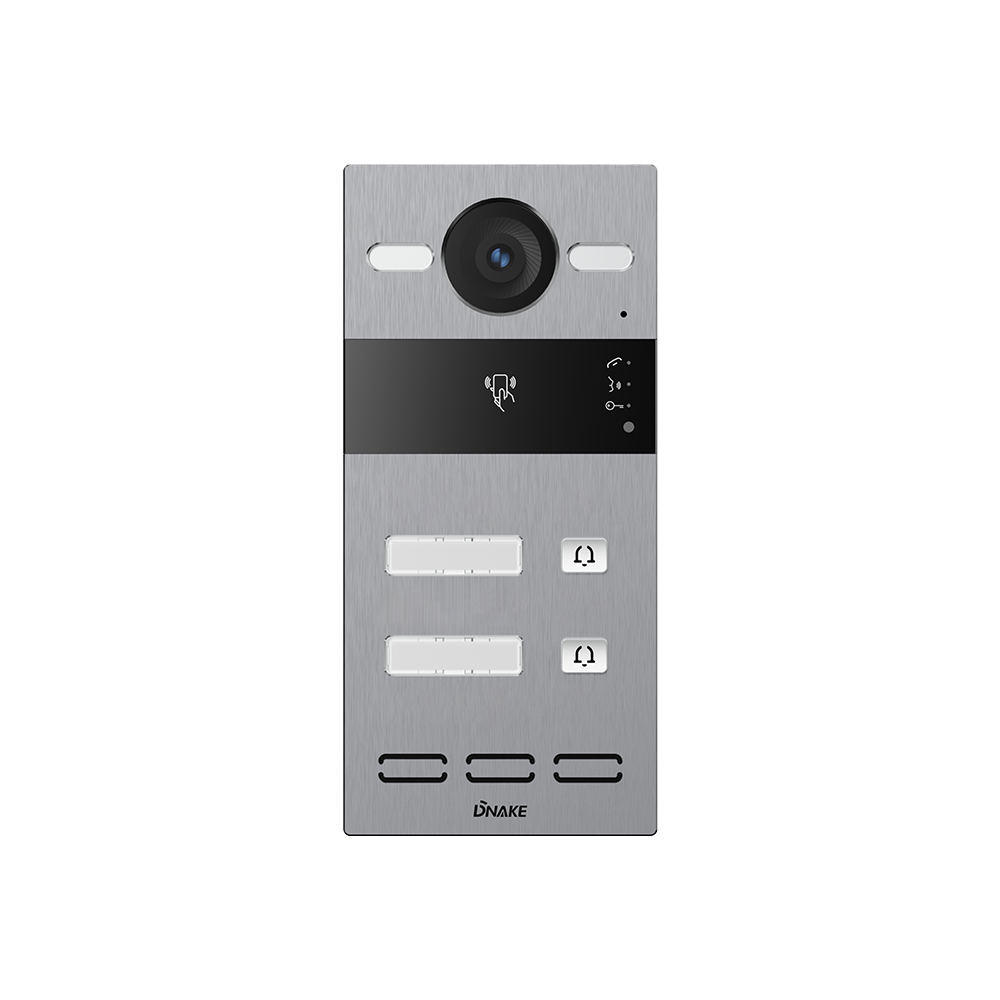

•Multi-button tare da goyan bayan farantin suna (maɓallai 2 ko 5 na zaɓi)

• Hanyoyin shiga kofa: kira, katin IC (13.56MHz), katin shaida (125kHz), APP

• Taimakawa katunan 60,000

• 3 hadedde alamomi

• IP65 mai hana ruwa & ƙura

• Tamper ƙararrawa

• Standard PoE (IEEE802.3af) / 12V DC

• Low zafin jiki juriya (-40 ℃ zuwa 55 ℃)

• Goyon bayan saman & tarwatsa hawa

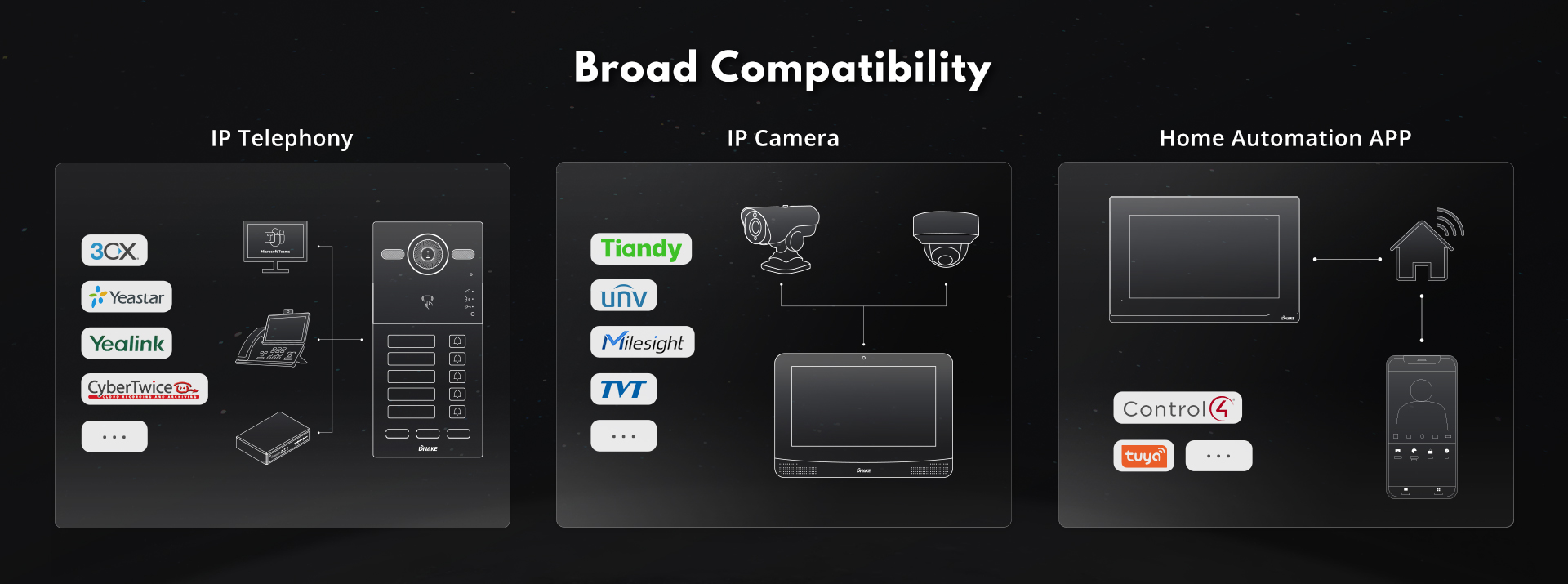

• Haɗin kai mai sauƙi tare da sauran na'urorin SIP ta hanyar SIP 2.0

Samu Magana

Spec

Dukiya ta Jiki
Tsari	Linux
RAM	64MB
ROM	128MB
Kwamitin Gaba	Aluminum
Maballin Sake saitin	1
Tushen wutan lantarki	PoE (802.3af) ya da DC12V/2A
Ƙarfin jiran aiki	1.5W
Ƙarfin Ƙarfi	3.5W
Kamara	2MP, CMOS
Hasken Nuni	3
Shigar Kofa	IC (13.56MHz), ID (125kHz) Katin, APP
IP Rating	IP65
Shigarwa	Surface & Flush Dutsen
Girma	188 x 88 x 34 mm (Hawan Sama); 230 x 120 x 48 mm (Flush Dutsen)
Yanayin Aiki	-40 ℃ - +55 ℃
Ajiya Zazzabi	-40 ℃ - + 70 ℃
Humidity Aiki	10% -90% (ba mai haɗawa)
Audio & Bidiyo
Codec Audio	G.711
Codec na Bidiyo	H.264
Tsarin Bidiyo	1280 x 720
Duban kusurwa	110°(H) / 60°(V) / 125°(D)
Raya Haske	LED farin haske
Sadarwar sadarwa
Yarjejeniya	SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
Wiegand Port	Taimako
Ethernet Port	1 x RJ45, 10/100 Mbps masu daidaitawa
Saukewa: RS485	1
Bada Wayar da Kai	2
Shigarwa	2
