    WSER40Q-8/19

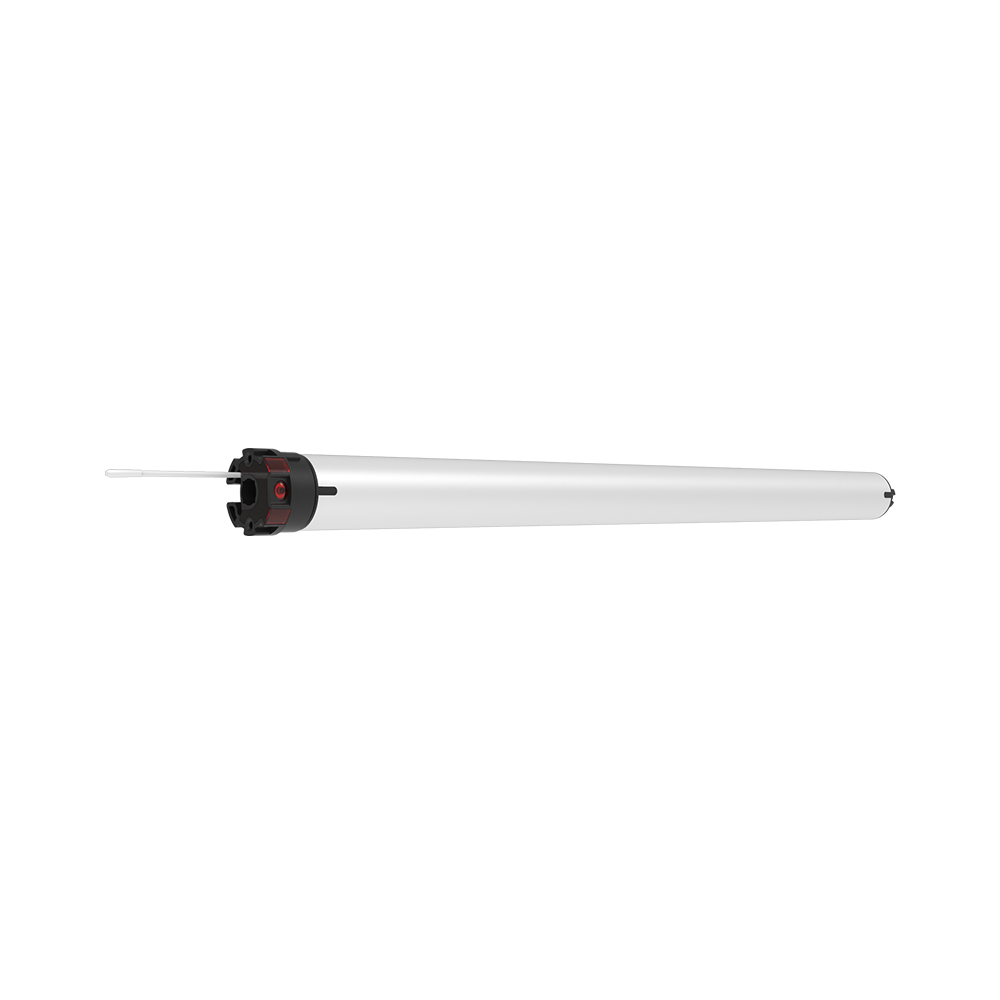

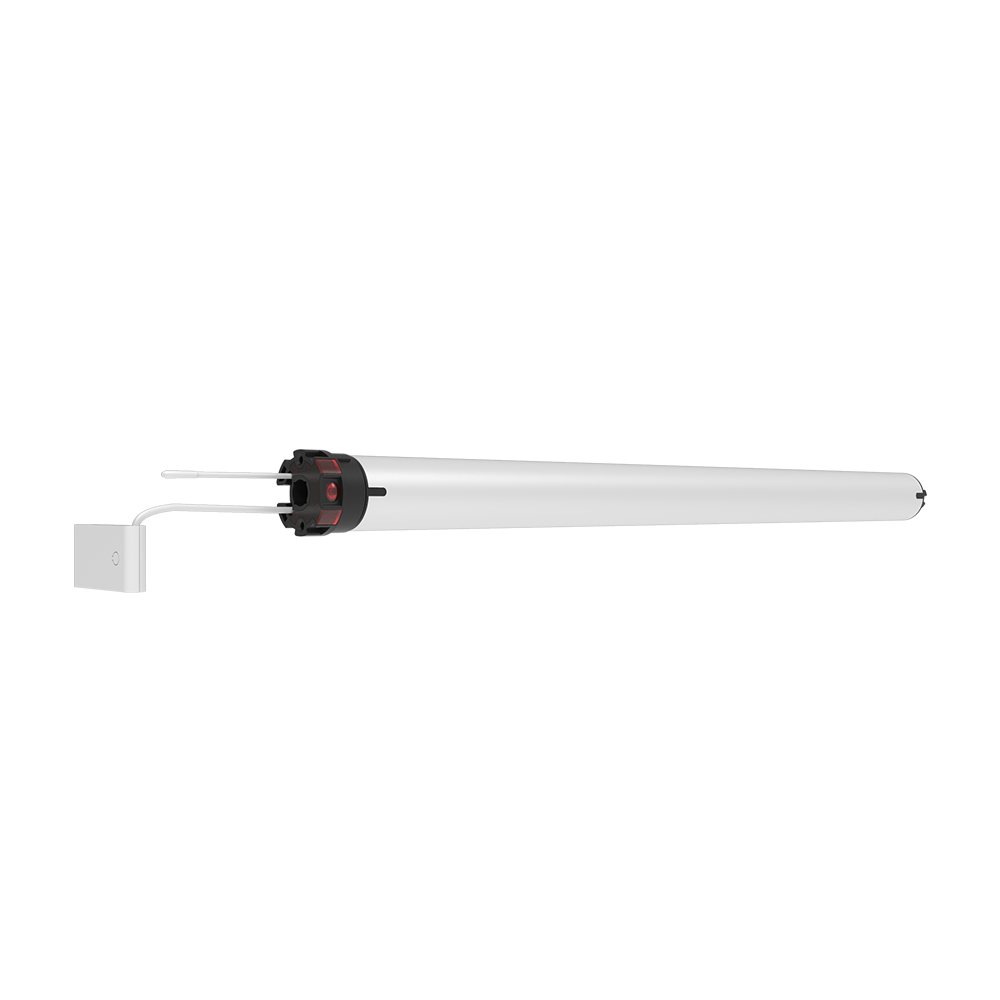

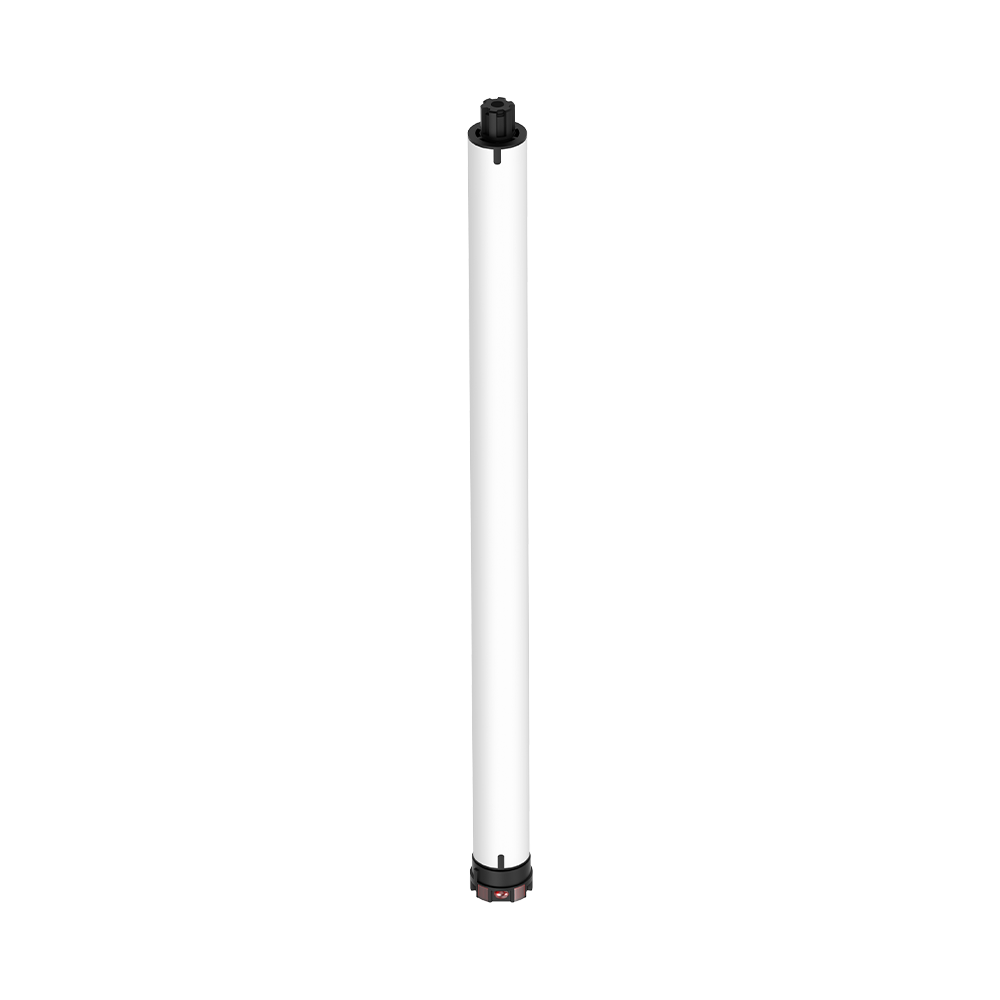

    Tubular Motor

    904M-S3 Android 10.1″ Touch Screen TFT LCD Indoor Unit

    • Designed for track control of roller shutters and blinds
    • Electronic limit switch
    • Tilting to adjust light
    • One tap to control the whole shading system
    • Scheduled task
    • Accurate control by percentage
    • External ZigBee module
    • Third limit function
    • Easy installation and operation
    Control Panel icon_1 Control Panel icon_4Control Panel icon_3
    WSER40Q-819 Detail Page1 WSERQ40-8-19 Detail Page_ 2 WSERQ40-8-19 Detail Page_3

    Spec

    Download

    Product Tags

     Technical Details
      Communication  ZigBee
      Torque  8N.m
      Output Speed  12r/minute
      Rated Power  155W
      Rated Voltage  230V
      Rated Current  0.68A
      Running Time  4 Minutes
      Protection Index  IP44
      Maximum Turns  ∞
      Net Weight  1.4 KG
      Dimensions  40 x 40 x 525 mm
      Pipe Diameter  35 mm
    • Datasheet 904M-S3.pdf
      Download

    • Get A Quote

    Full Name*
    Phone*
    Company Name*
    Country/Region*
    What best describes you
    Product of interest*
    What we can help with
    Message*
